Sign Angle Reflective Measuring Instrument Single Angle Reflective Mobile Retroreflectometer Movable Retroreflection Machine

Name: Sign Angle Reflective Measuring Instrument Single Angle Reflective Mobile Retroreflectometer Movable Retroreflection Machine
Brand: LONROY
Price: 1 USD

Quality Sign Angle Reflective Measuring Instrument Single Angle Reflective Mobile Retroreflectometer Movable Retroreflection Machine for sale

Brand Name : LONROY

Place of Origin : Guangdong, China

MOQ : 1

Voltage : 220 V

Protection Class : Ip56

Color Temperature : 2856±50K

Data Storage : 8G

Net Weight : 1.9kg

Overall Volume : 220mm × 246mm × 82mm

Retroreflective Coefficient : 0-2000mcd/(m²*lx)

Traffic Sign Angle : Incidence Angle: -4°; Viewing Angle: 0.2°

High Visibility Angle : Incidence Angle: 5°; Viewing Angle: 0.33°

Spot Diameter : Φ30mm

Working Time : >12 Hours

Incidence Angle : -4° (Traffic Sign), 5° (High Visibility)

Observation Angle : 0.2° (Traffic Sign), 0.33° (High Visibility)

Light Source : Standard A

Test Data Capacity : 100,000

Contact Now

Sign Angle Reflective Measuring Instrument Single Angle Reflective Mobile Retroreflectometer Movable Retroreflection Machine

Product Description

Introduction

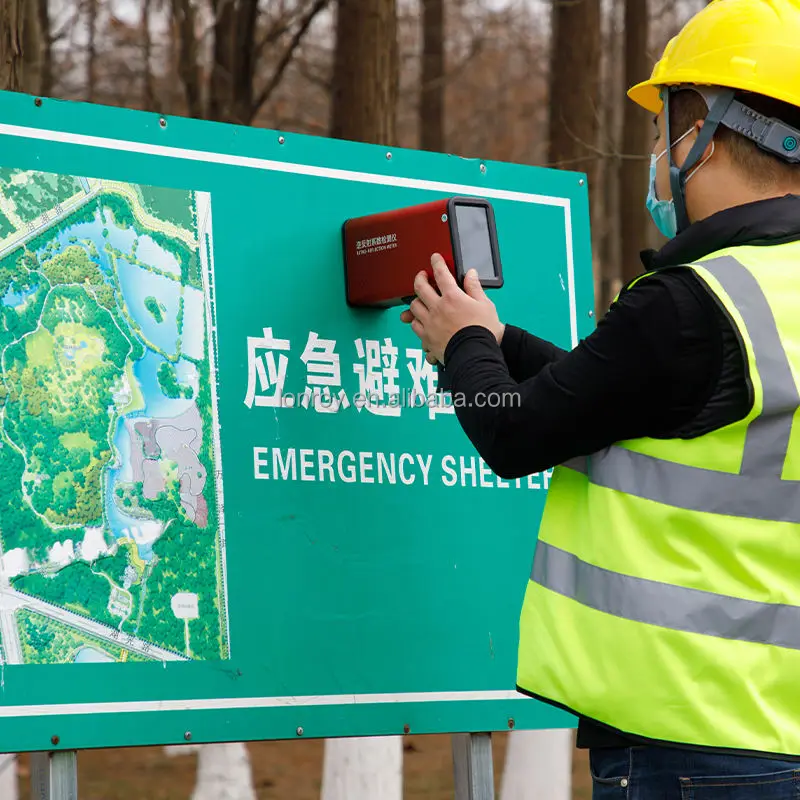

For Road traffic sign:
Incidence Angle: -4°
Observation Angle: 0.2°

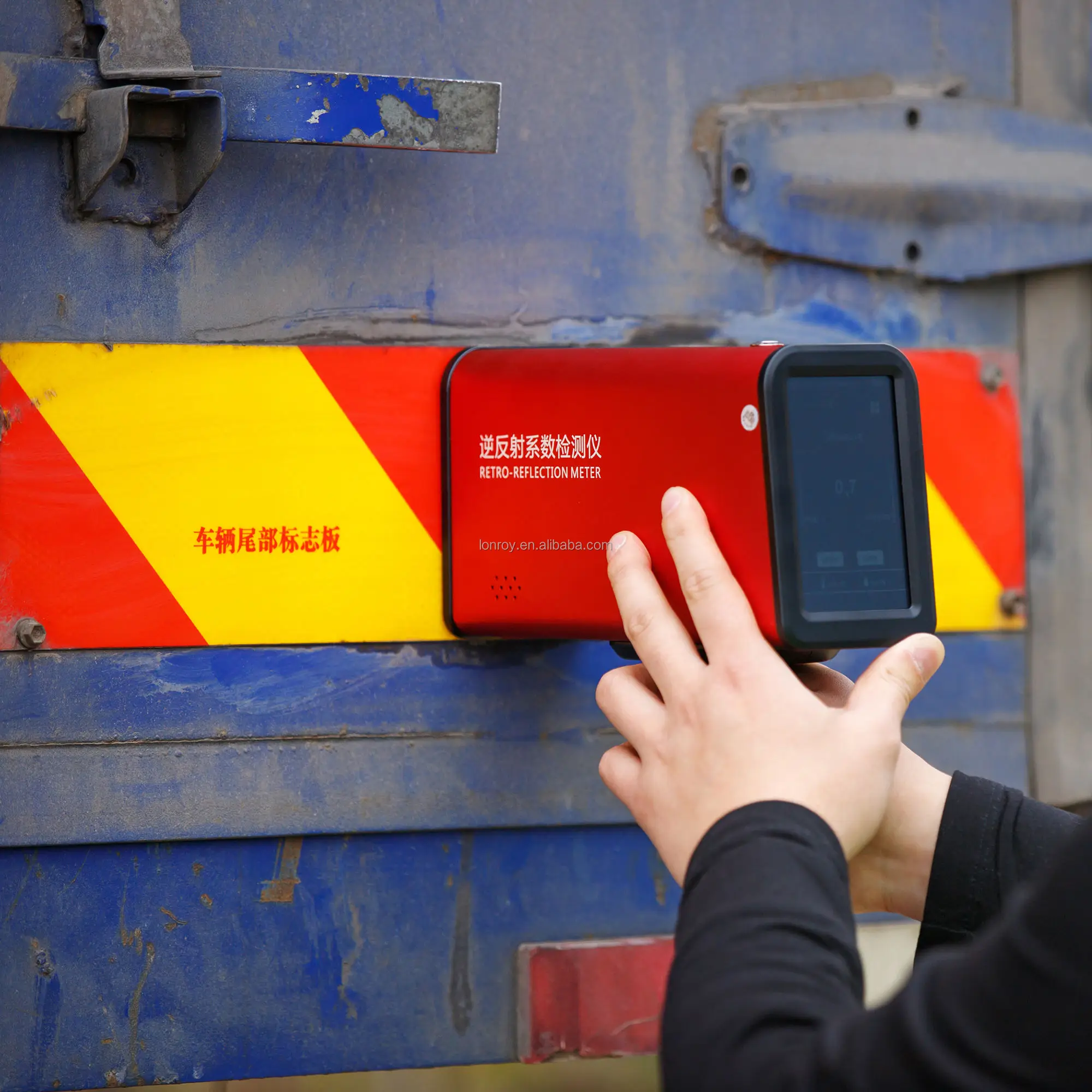

For High visibility clothing:
Incidence Angle: 5°
Observation Angle:0.33°
Spot diameter:p30mm

Sign Angle Reflective Measuring Instrument Single Angle Reflective Mobile Retroreflectometer Movable Retroreflection Machine

Technical Specification

Retroreflective Coefficient	RL Measurement Range: 0-2000mcd/(m²·lx)
Traffic Sign Angle	Incidence Angle: -4°; Viewing Angle: 0.2°
High Visibility Clothing Angle	Incidence Angle: 5°; Viewing Angle: 0.33°
Color Temperature	2856±50K (Standard A Light Source)
Spot Diameter	Φ30mm
Working Time	>12 Hours
Data Storage Space	8G (Capable of storing over 100,000 test data)
Overall Volume	220mm × 246mm × 82mm
Net Weight	1.9kg
