High Wattage Alloy Plate Type Resistance Cabinet with 220V Voltage and 30KW-1000KW Rated Power for Load Balance Testing

Name: High Wattage Alloy Plate Type Resistance Cabinet with 220V Voltage and 30KW1000KW Rated Power for Load Balance Testing
Brand: Lonroy
Price: 1 USD

Quality High Wattage Alloy Plate Type Resistance Cabinet with 220V Voltage and 30KW-1000KW Rated Power for Load Balance Testing for sale

Brand Name : Lonroy

Place of Origin : China

MOQ : 1

Voltage : 220 V

Load accuracy : ±5%

Rated power : 30KW-1000KW

Environmental temperature : -10℃~+55℃

Relative humidity : ≤95%

Voltage range : 10KV and below

Power classification : 0.1KW, 0.5KW, 1KW, 2KW, 5KW, 10KW, 20KW, 50KW, 100KW, 200KW

Working power supply : Single-phase AC 220V/50HZ

Insulation class : Class F

Fan noise : 75 decibels

Working mode : Continuous operation (>200 hours)

Altitude : ≤ 2500 meters

Power factor : PF=1

Cooling method : Forced air cooling

Connection method : Copper busbar wiring

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

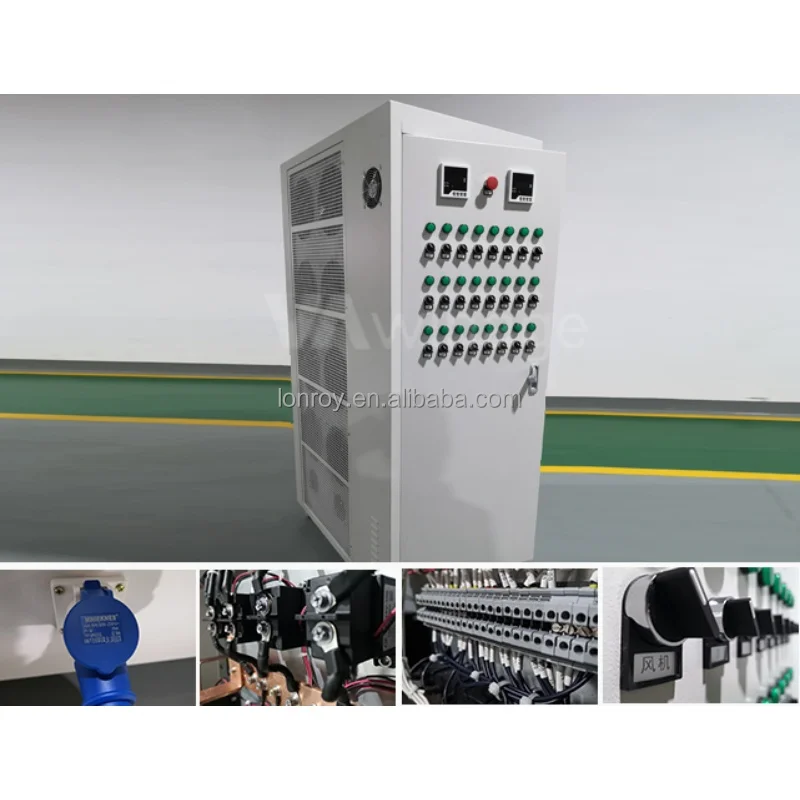

High Wattage Alloy Plate Type Resistance Cabinet High Capacity Load Balance Resistive Testing Machine

Product Description

Introduction

The high-power resistance cabinet is used in high-power inverter power supplies, high-power adjustable DC power supplies, high-power frequency conversion power supplies and high-power DC motors, which are all high-power electrical equipment. To balance the load and prevent overcurrent, and to protect the equipment safety, it is assembled by designing modular high-power alloy plate-type resistance cabinets. The product is widely applied in fields such as ships, power, ports, telecommunications, petroleum, metallurgy, nuclear power, and marine engineering.

It is manufactured by using high-quality load resistors independently developed by Lonroy and new alloy resistors. According to the requirements of the energy dissipation resistor cabinet and the current-limiting resistor cabinet, the heat dissipation structure and protection level have been optimized. It has the functions of adjustment and remote control, and can be selected. The large screen displays the data. It can be used for the loading test of high-power power supplies and the energy dissipation needs of high-voltage generator electromotive force resistor cabinets. This product has the advantages of large current, high control accuracy and good heat dissipation performance.

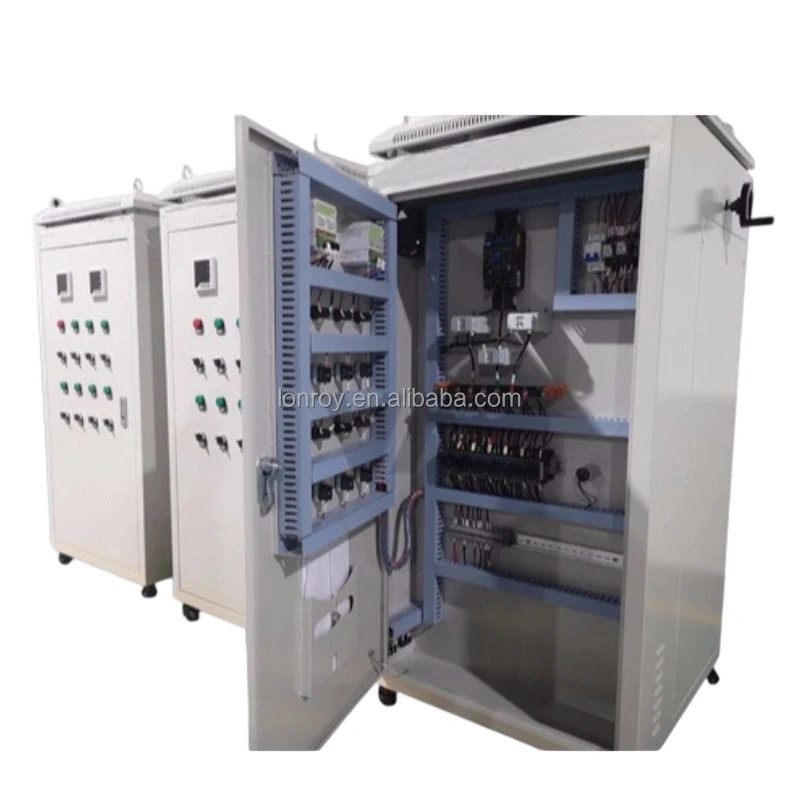

High Wattage Alloy Plate Type Resistance Cabinet High Capacity Load Balance Resistive Testing Machine

Technical Specification

Voltage range	10KV and below are available with the following power options
Power classification	0.1KW, 0.5KW, 1KW, 2KW, 5KW, 10KW, 20KW, 50KW, 100KW, 200KW.
Load accuracy	±5%
Working power supply	Single-phase AC 220V/50HZ
Insulation class	Class F
Fan noise	75 decibels
Working mode	Can operate continuously (single continuous operation time > 200 hours)
Altitude	≤ 2500 meters
Movement mode	Equipped with heavy-duty swivel casters, 2 each at the front and rear
Protection function	Over-temperature alarm, over-voltage protection, over-current protection, undervoltage and fault beeping alerts, etc.
Rated power	30KW-1000KW
Power factor	PF=1
Explicit method	LED displays real-time voltage, current, power, frequency and other electrical parameters.
Control method	Local panel buttons for manual control.
Protection level	IP20 (suitable for indoor use)
Cooling method	Enclosed with forced air cooling
Connection method	Copper busbar wiring
Applicable environmental temperature	-10℃~+55℃
Applicable relative humidity	≤95%
