Generator Resistance Cabinet Neutral Point Grounding Resistance Box for 100/125 MW High Voltage Generator with 10.5 KV and 0.5, 0.8, 1 Ω Resistance

Brand Name : Lonroy

Place of Origin : China

MOQ : 1

Voltage : 220 V, 380 V

Protection Class : Ip56

Generator capacity : 100/125 MW

Generator rated voltage : 10.5 KV

Secondary side resistance : 0.5, 0.8, 1 Ω

Maximum grounding current : 4, 5, 6 A

Primary side voltage : 10.5/√3, 13.8/√3, 15.75/√3, 18/√3, 20/√3 KV

Secondary side voltage : 0.22 KV

Transformer rated capacity : 30, 50 KVA

Grounding protection voltage : 0.1 KV

Resistance temperature coefficient : Small

High temperature resistance : Yes

Applicable voltage range : 35KV and below

Resistor type : High-voltage large-power

Functional structure : Designed for environment

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

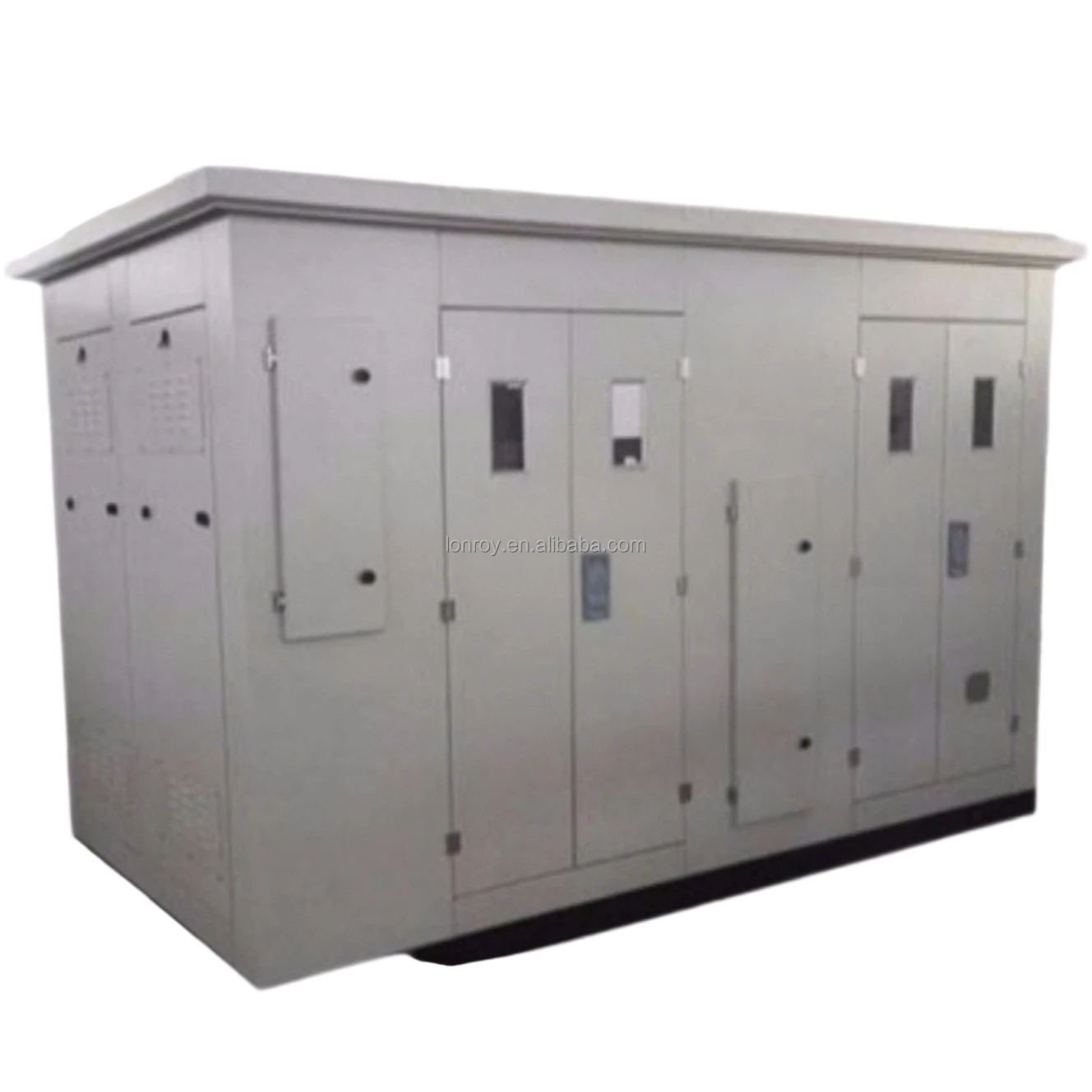

Generator Resistance Cabinet High Voltage Generator Neutral Point Grounding Resistance Box

Product Description

Introduction

The generator resistance cabinet, also known as the generator neutral point grounding resistance cabinet, is used for diesel generators or wind turbines when they are operating in grid connection mode. In the event of a single-phase grounding fault, it can promptly detect and quickly switch the circuit, limiting the grounding current, preventing overvoltage hazards, and thereby avoiding damage to the winding insulation and subsequently developing into inter-phase or inter-turn short circuits. This product is widely used in urban power supply systems, power plants, subways, ships, metallurgy, wind farms, photovoltaic power stations, and ports, among other fields.

Advantage

It is manufactured by using high-quality high-voltage large-power resistors independently developed by Lonroy, as well as various new alloy resistors. According to the different working environment characteristics of various generators or photovoltaic power generation systems, a functional structure and protection level cabinet that is suitable for product use has been designed. It has the advantages of safe operation, high temperature resistance, and small resistance temperature coefficient. It is a dedicated complete set device for high-resistance grounding of 35KV and below generator sets.

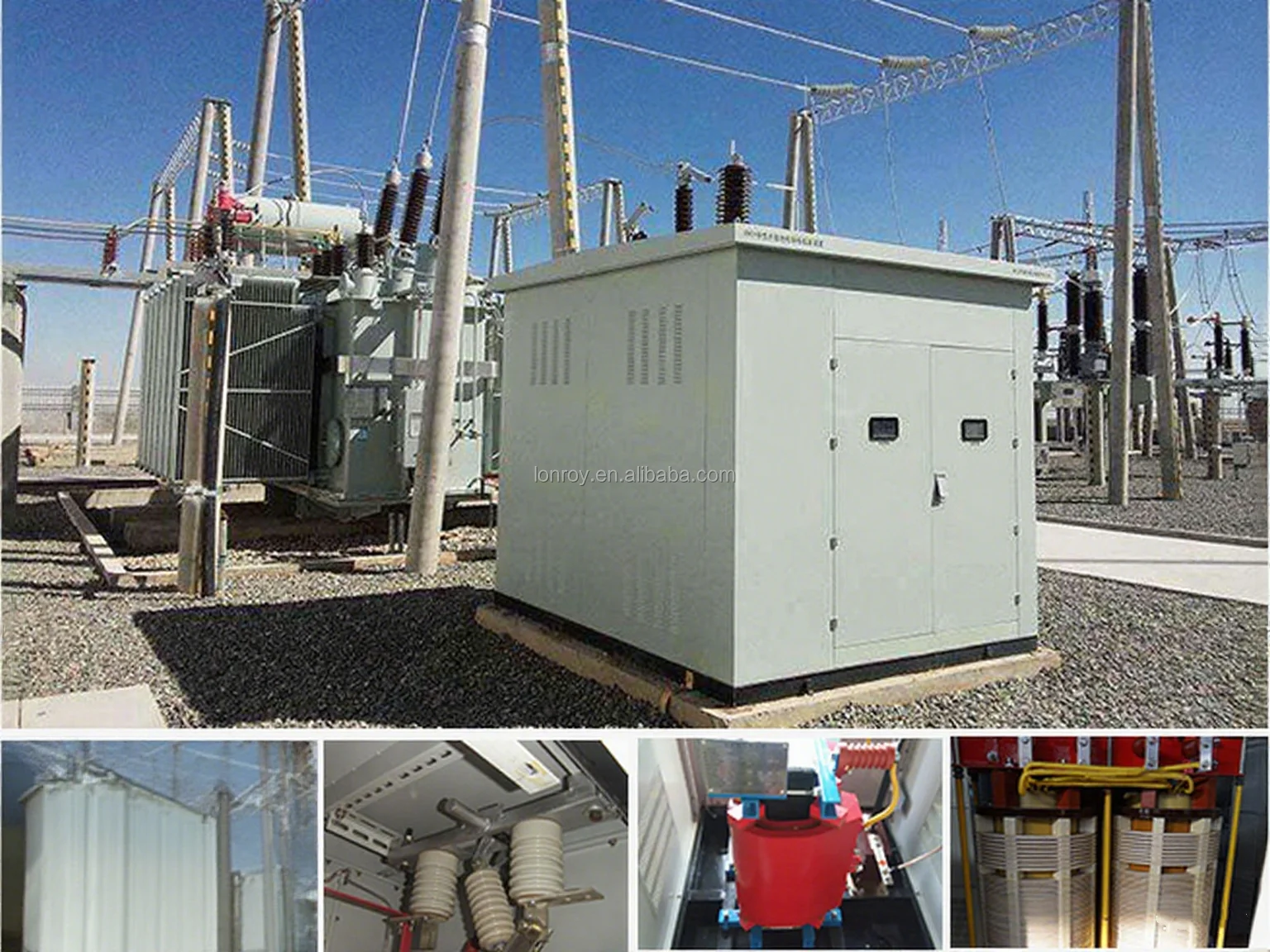

Generator Resistance Cabinet High Voltage Generator Neutral Point Grounding Resistance Box

Technical Specification

Generator capacity (MW)

100/125 MW

200 MW

300 MW

Generator rated voltage (KV)

10.5

13.8

15.75

18

20

Maximum single-phase grounding current in the expected circuit (A)

4

5

6

Primary side voltage of the grounding transformer (KV)

10.5/√3

13.8/√3

15.75/√3

18/√3

20/√3

Secondary side voltage of the grounding transformer

0.22

0.22

0.22

Rated capacity of the grounding transformer (KVA)

30

30

50

Secondary side resistance value (Ω)

1

0.8

0.5

Grounding protection extraction voltage (KV)

0.1

0.1

0.1

Generator Resistance Cabinet Neutral Point Grounding Resistance Box for 100/125 MW High Voltage Generator with 10.5 KV and 0.5, 0.8, 1 Ω ResistanceGenerator Resistance Cabinet Neutral Point Grounding Resistance Box for 100/125 MW High Voltage Generator with 10.5 KV and 0.5, 0.8, 1 Ω ResistanceGenerator Resistance Cabinet Neutral Point Grounding Resistance Box for 100/125 MW High Voltage Generator with 10.5 KV and 0.5, 0.8, 1 Ω Resistance
